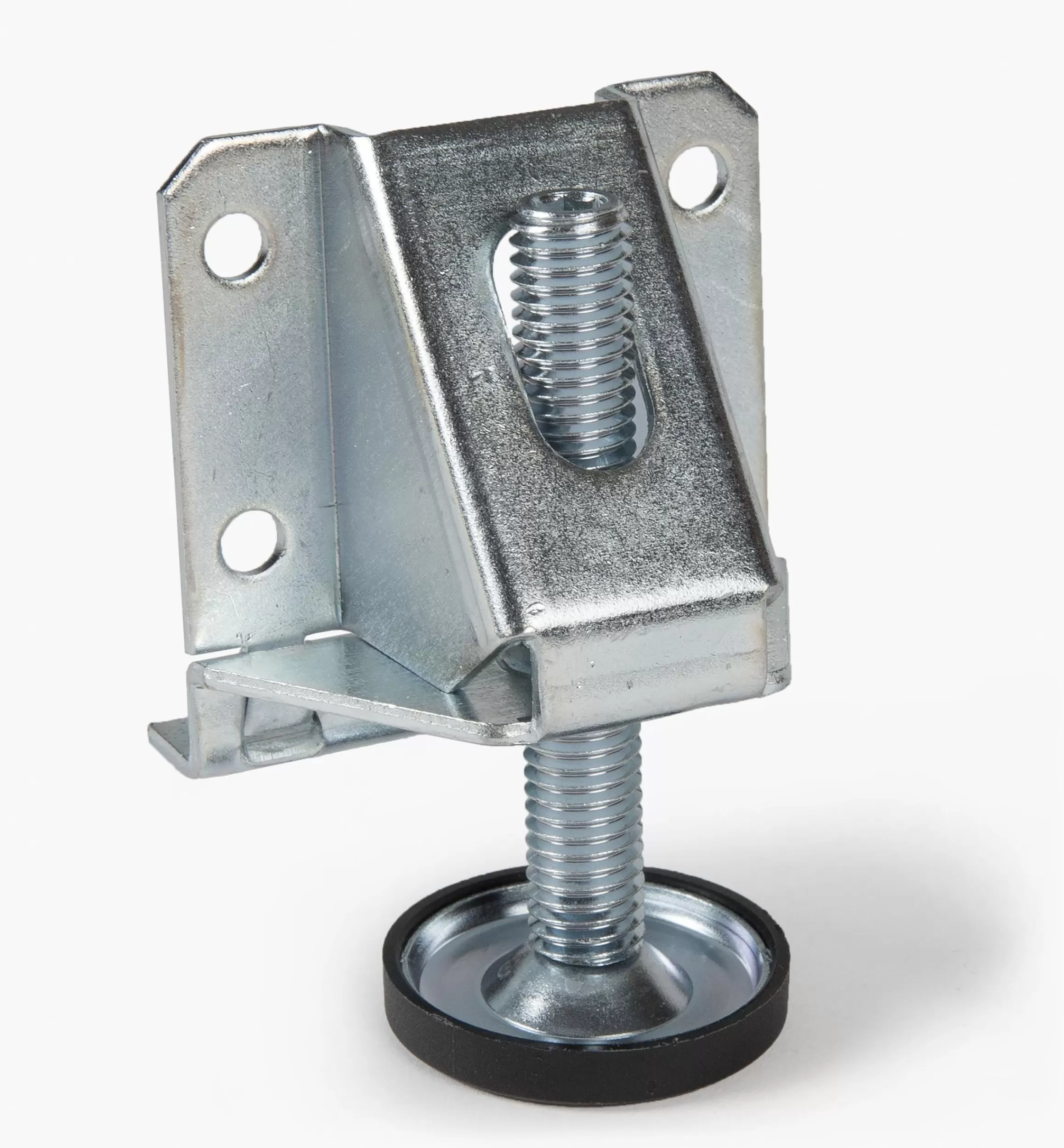

Lee Valley Heavy-Duty Adjustable Glide

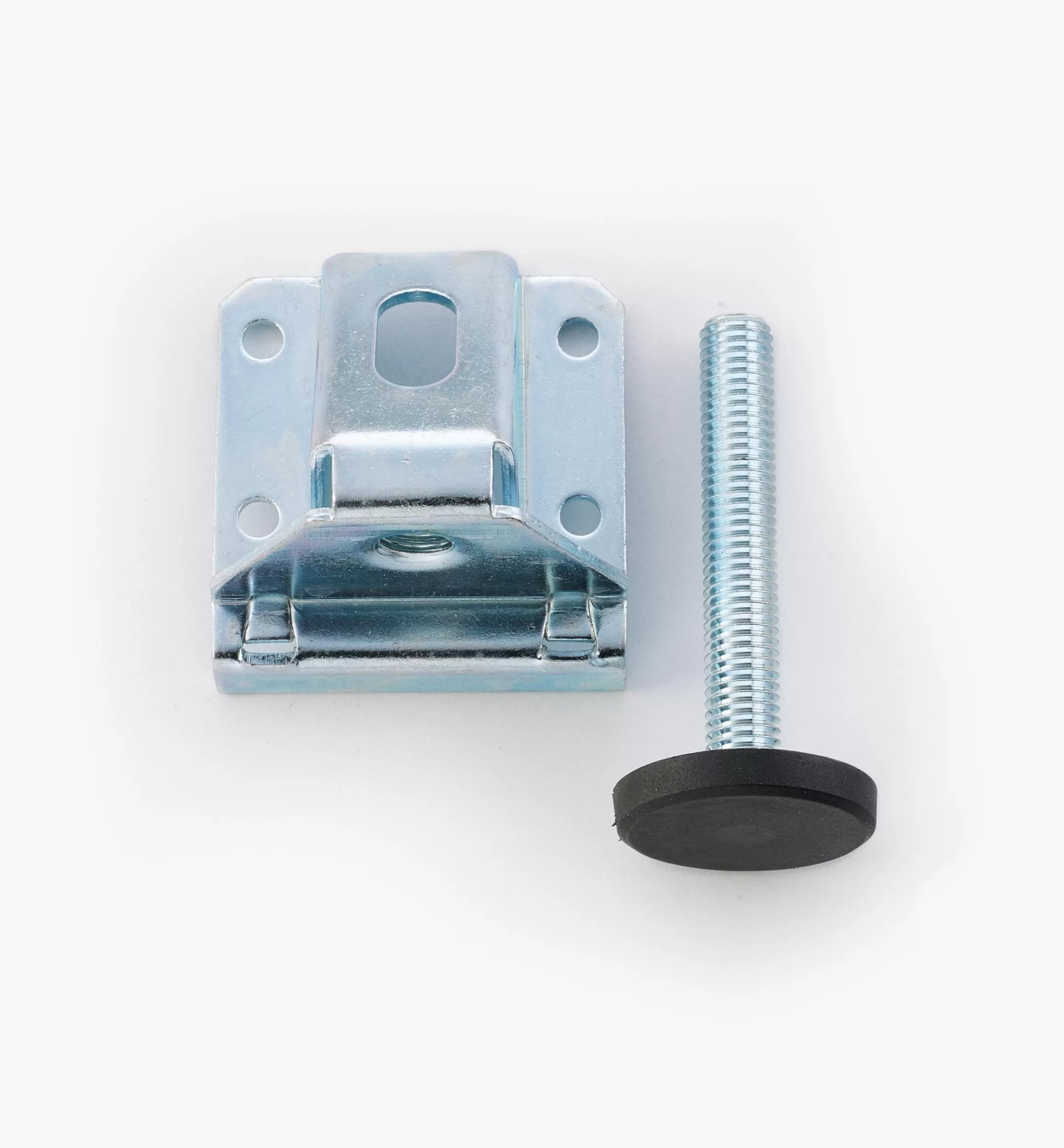

This adjustable glide is load rated at 330 lb. The 1 1/4″ diameter pivoting foot is capped with polyethylene and is attached to a 3/8″ × 2 1/2″ bolt. The bolt head has a hex recess, allowing adjustment under full load, using a hex key (not included).

The glide is side mounted and has a 5/16″ lip to support the load. The glide assembly is 2 1/8″ wide, 2 1/8″ high and 1 3/4″ deep. Adjusts over a range of 2″.

Glides sold individually.
